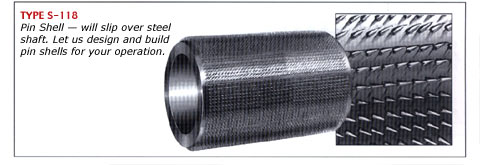

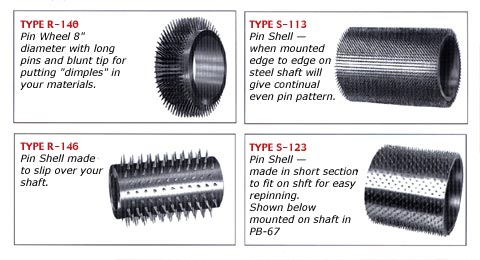

DESCRIPTION OF TYPE R-146 / S-113 / S-118
"REGULAR SIZE" PIN SHELLS (REPINNABLE)
|
O.D. |
I.D. |
WIDTHS |
PIN PROJECTION STRAIGHT UP |
PIN SIZE |
TAPERED POINT LENGTH |
|
|
1-1/2" |
1/2" |
2" to 6" |
1/32" to 3/8" |
.024" to .125" |
To be determined |
|
2" |
1-1/2" |
2" to 6" |
1/32" to 3/8" |
.024" to .125" |
To be determined |
|
2-1/2" |
2" |
2" to 6" |
1/32" to 3/8" |
.024" to .125" |
To be determined |
|
3" |
2-1/2" |
2" to 6" |
1/32" to 3/8" |
.024" to .125" |
To be determined |
|
3-1/2" |
3" |
2" to 7" |
1/32" to 3/8" |
.024" to .125" |
To be determined |
|
4" |
3-1/2" |
2" to 8" |
1/32" to 3/8" |
.024" to .125" |
To be determined |
|
5" |
4-1/2" |
2" to 10" |
1/32" to 3/8" |
.024" to .125" |
To be determined |
|
6" |
5" |
2" to 13" |
1/32" to 3/8" |
.024" to .125" |
To be determined |
|
7" |
To be determined |
2" to 13" |
1/32" to 3/8" |
.024" to .125" |
To be determined |
|
8" |
To be determined |
2" to 13" |
1/32" to 3/8" |
.024" to .125" |
To be
determined |
Descriptions show some of
the "common size shell rolls" we manufacture. For example: A 2-1/2"
O.D. shell roll can be made with I.D. up to 2", normal widths from
2" to 6", with square or diamond pin patterns as shown. If these
sizes do not meet your requirements, we will gladly make these type
pin shells to your exact sizes — we have over 1600 sizes of heat
treated, tool steel sharp points in stock, to use in making your
pinned products. Many combinations of pin patterns can be
used.
Phone, fax or e-mail with your needs so we can assist
you.

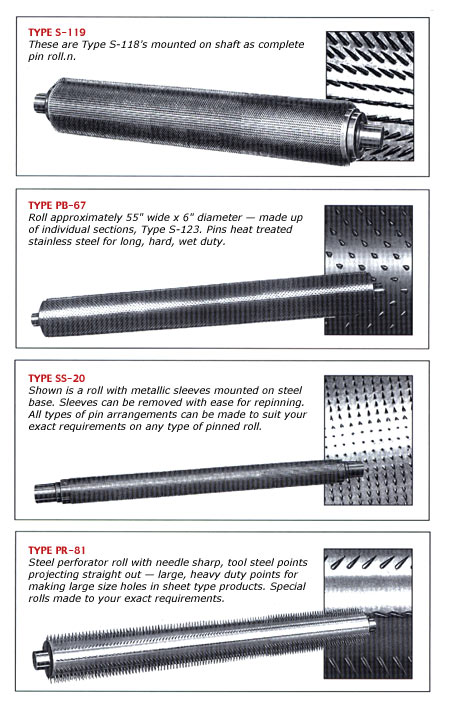

COMPLETE ROLLS MADE WITH SHELLS MOUNTED ON
SHAFTING.
